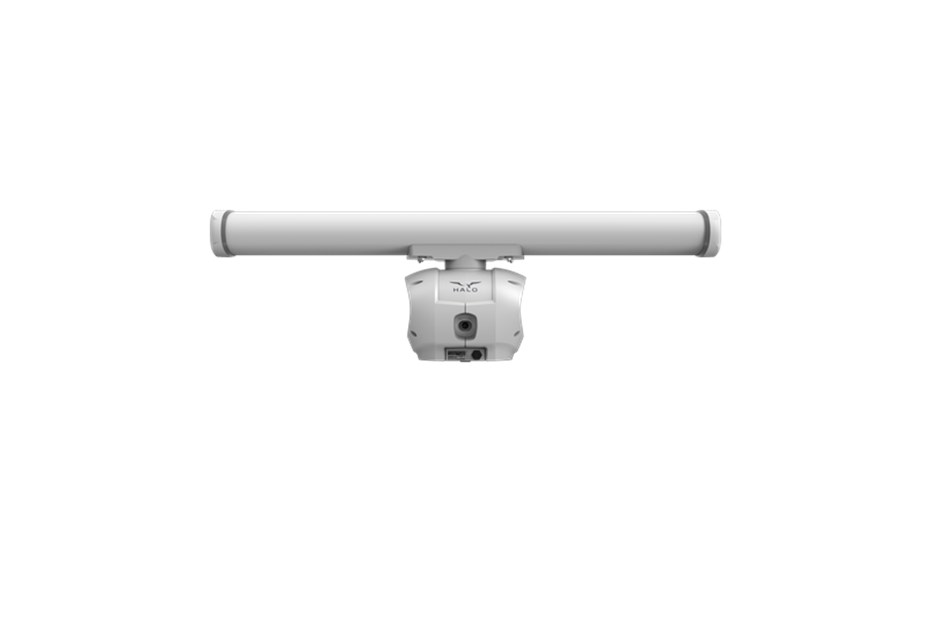

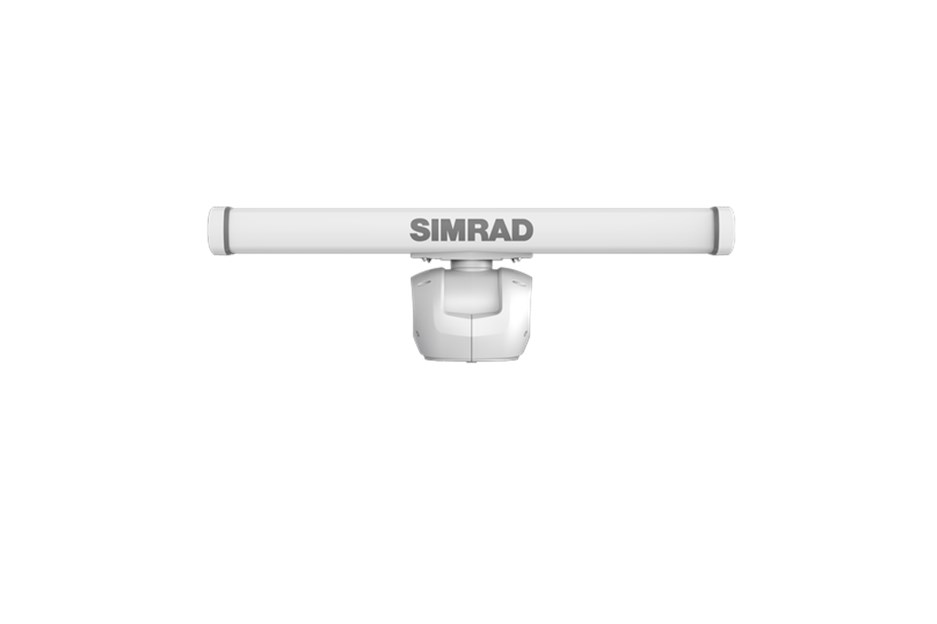

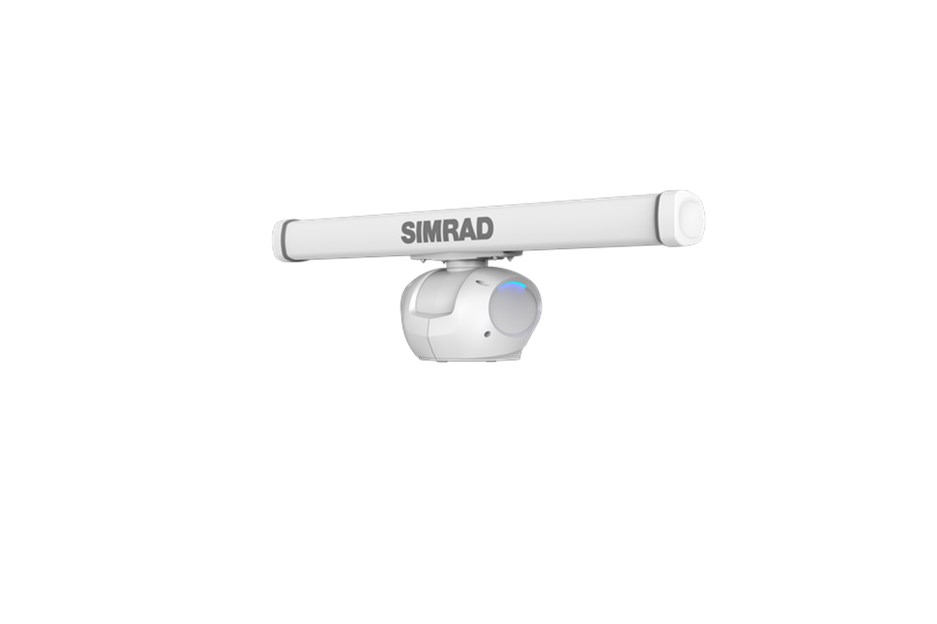

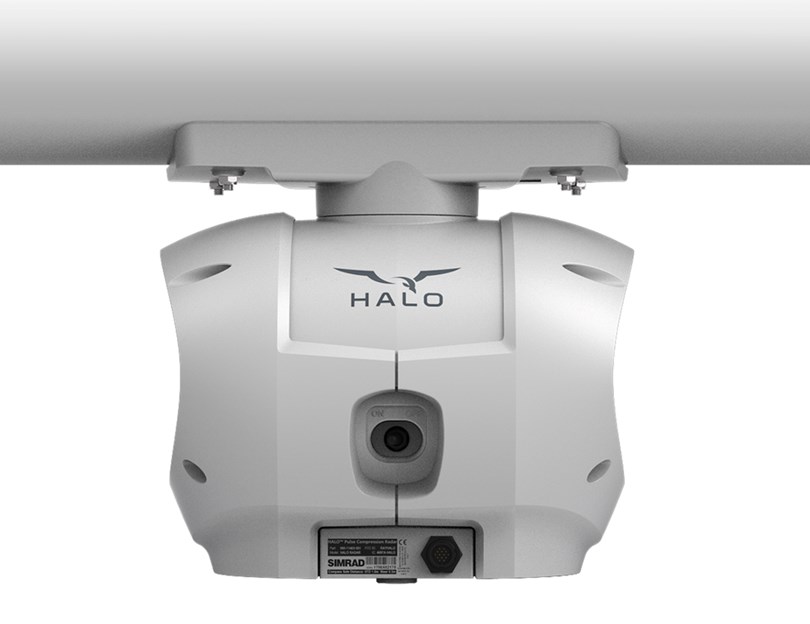

HALO® 3004 Open Array Radar
SKU: 000-15763-001
000-15763-001Get more from your radar – tracking other vessels, hazards, and storms from greater distances with HALO® 3000. Benefit from safer navigation and unrivalled ease of use with a range of preset modes, while advanced Pulse Compression technology ensures superior clarity and precision over both short and long distances.
Product details
More Power Matters
The HALO® 3000 radar offers a safer experience on the water. An impressive 130W power – equivalent to a 25KW magnetron radar – delivers an unrivalled combination of short- and long-range coverage that enables you to see targets from six meters (20 feet) out to 96 nautical miles with exceptional clarity. Pulse Compression technology powers confident navigation through busy waterways, and superior storm and hazard detection across a greater distance. HALO® 3000 not only increases situational awareness and collision avoidance, but also offers higher-resolution target detection you won’t find in lower-powered radars.
Safer Navigation
HALO 3000 boasts an array of new features that make navigation safer and offer peace of mind.
ZoneTrack™ allows user to track up to 50 vessels within a defined area, automatically detecting their course and speed. HALO’s Dangerous Target Alerts highlight range, graphical bearing and heading of other vessels relative to yours. Meanwhile, VelocityTrack™ uses Doppler technology to show targets colour-coded so you can identify potential threats at a glance. Because, when it comes to safety, situational awareness is everything.
Building on the HALO Legacy
The next generation of pulse compression radar, HALO 3000 builds on the features that have made HALO an established choice for boaters across the globe. The solid-state technology gets you up and running quickly, and HALO’s low-power pulsed transmissions make it safe to run in harbours. Dual Range mode allows you to keep an eye on distant weather cells, while monitoring channel markets and high-speed watercraft up close. Advanced digital signal processing gives you a clearer view of targets, helping eliminate sea clutter, while Beam Sharpening provides enhanced separation between small or distant targets. The latest HALO radars are also more robust than ever, with a new gearbox, enhanced thermal mitigation and better protection against water ingress. Finally, HALO 3000 has the same footprint as its predecessor, making it easy to upgrade your current system.
Compatibility
It’s also compatible with a range of Simrad® chartplotters, including NSS™, NSX™, NSO™ and R2009/R3016™.
Easier Operation
Designed with an intuitive interface, HALO 3000 makes operation easier with smart features like Harbour, Offshore, Bird and Weather modes. These Preset Modes require no manual tuning – just select your chosen mode and go.
This simple approach also extends to fishing, with HALO’s powerful bird-finding capability which enables boaters to find flocks of birds and – more importantly – schools of fish at a distance.
Key Features
- 130W power for longer range (from 6m to up to 96nm)
- Advanced pulse compression technology with beam sharpening
- Simultaneous Dual Range operation
- Easy operation with Harbour, Offshore, Weather, and Bird modes
- Track up to 50 targets with ZoneTrack
- VelocityTrack Doppler technology for collision avoidance
- Dangerous Target Alerts for radar and AIS targets
- Ready instantly from standby, and in 16-25 seconds from power-on
- Available in 3-, 4- and 6-foot arrays
