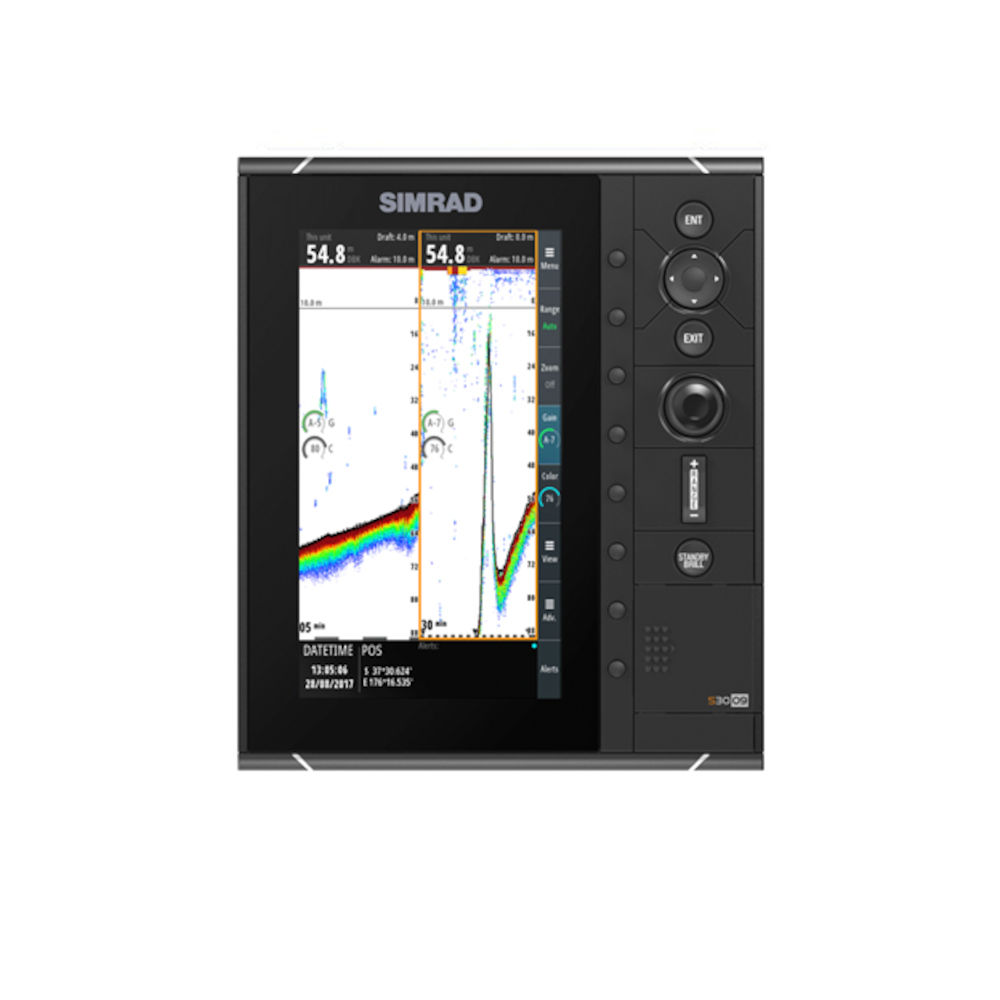

S3009 Navigation Echosounder

SKU: 000-14215-001

The Simrad S3009 Navigational Echosounder meets the requirement for reliable and accurate bottom tracking and depth recording on a wide range of commercial vessels. Exceeding the latest performance standards for IMO compliance, the S3009 features modern controls for easy operation. The single-transducer S3009 system is cost effective, compact, and easy to install in tight spaces. An S3009 Expanded system is also available, which adds the S5100 transceiver to enable separate bow and stern transducers

View Key Features

$3,100

Find a dealer

Product details

IMO Type Approved Echosounder
The S3009 IMO Echosounder is designed to meet operational needs and SOLAS carriage requirements for workboats, passenger and merchant vessels. The S3009 meets type-approval standards including IMO resolutions A.224(VII) and MSC.74 (69) Annex 4.

Simple, Modern Interface for Easy Operation
The S3009 provides quick access to common tasks such as setting alert depth and changing draft settings.

Single or Dual Transducer Capability
Available as a compact all-in-one system, or an expanded system with the S5100 transceiver, the S3009 uses standard 50 kHz and 200 kHz transducers and can be tailored to specific vessel requirements.

Highly Reliable Data with On-Screen Scrollback and SD storage
The S3009 shows 5, 10, 15, 30, or 60 minutes of data on the primary display and allows scrollback to view previously recorded depth information. A removable SD card can be used to store more than 12 hours of data.

Sophisticated Alert Management
The S3009 features an Alerts Acknowledge button as well as BAM integration for remote alert management. The Alert page displays active alerts and a historical log of alert conditions.

Supports 50 kHz and 200 kHz Transducers
Standard 70 mm diameter transducers facilitate easy installation with existing tanks and gate valves.

High Resolution Display
See data the way you prefer. The S3009 features ten levels of day/night brightness adjustment, and seven colour combinations. Bold bottom-tracking lines can be adjusted for clear interpretation of bottom track.

Industry-Standard Connectivity
The S3009 provides an IEC61162-1/2 (NMEA 0183®) interface to connect with Simrad ECDIS solutions and other Simrad or third-party bridge equipment. IEC 61162-3 (NMEA 2000®) and Ethernet networking are also supported.

Key Features

IMO type approved echosounder with integrated display
Meets IMO resolutions A.224(VII), MSC.74 (69) Annex 4
Highly accurate depth recording with 12 hour stored history
Cost effective and compact system for smaller, single-transducer vessels
Expanded S3009+S5100 system supports split screen readout with bow and stern transducers
9-inch 480x800-pixel high-brightness LCD
Easy-access front SD card slot for recording depth data
Industry standard 50 kHz and 200 kHz transducers
Complements Simrad and other Navigation equipment with standard IEC interfaces
